◎Applications

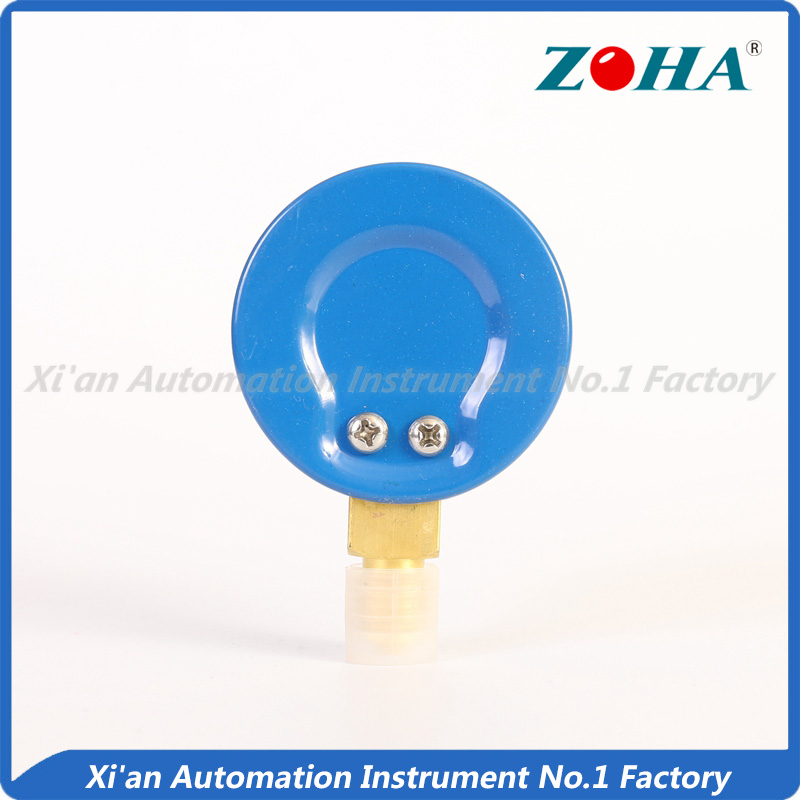

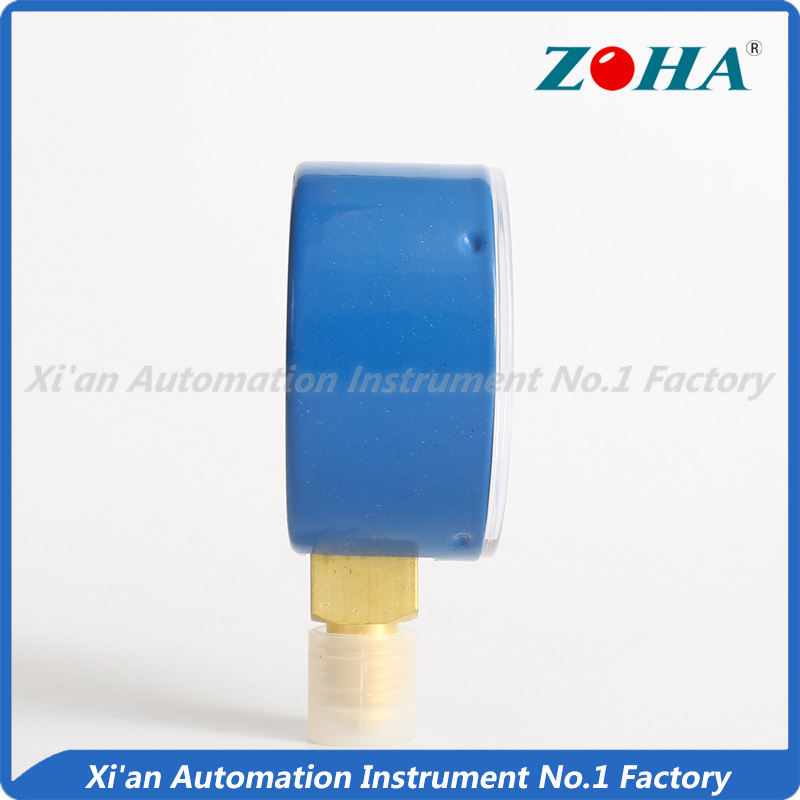

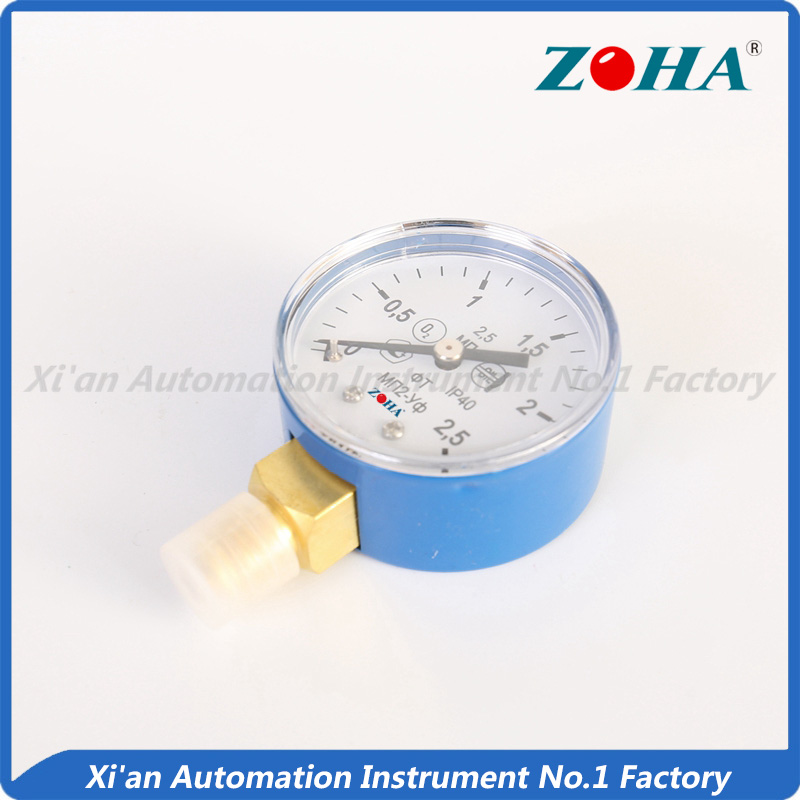

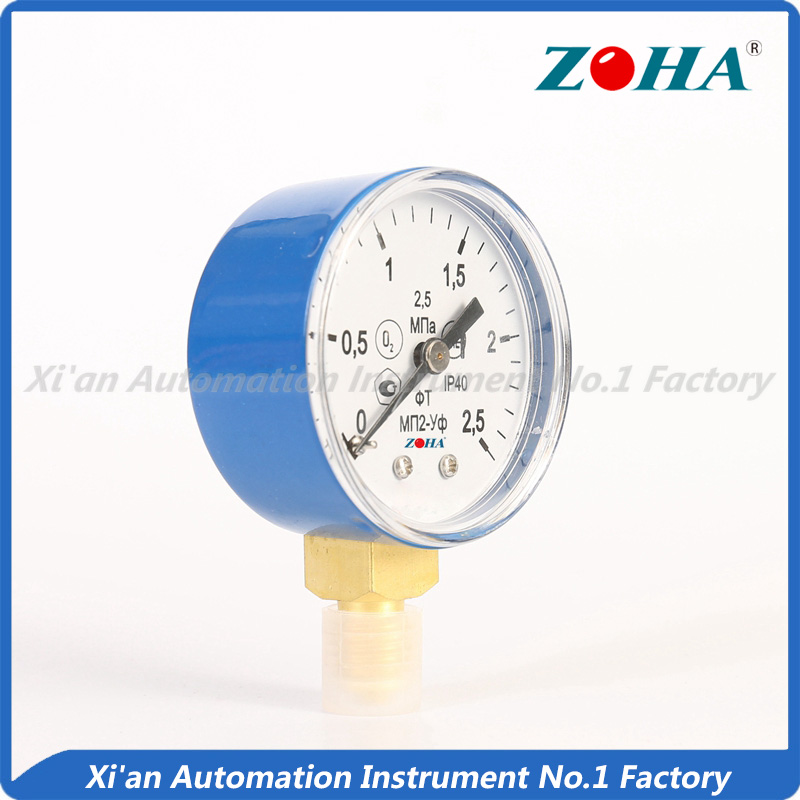

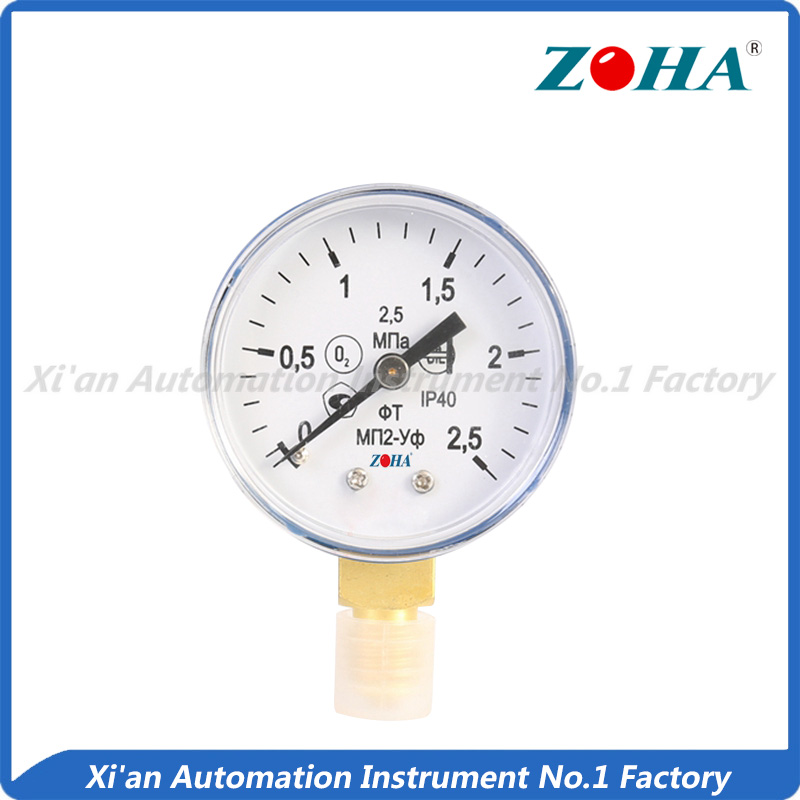

YO63 oxygen pressure gauge is used for measuring the pressure of oxygen medium. No oils and
fat forbidden to contact with the gauge.
◎Specifications
|
Name&Type |
Oxygen pressure gauge (Type:YO-63) |
|
Diameter |
63mm (40mm 50mm 100mm is available) |
|
Measuring Range |
-0.1~0~60MPa (As customers requirements) |
|
Pressure unit |
Mpa psi bar kg/cm2 etc. |
|
Accuracy class |
2.5% |
|
Case Material |
Steel |
|
Movement |
Brass |
|
Bourdon Tube |
Phosphor bronze |
|
Connector |
Brass |
|
Thread |
G1/4 NPT1/4 etc. |
|
Oil and fat |
Forbidden |
|
Environment Temp |
-40~70°C≤85% |
|
Mounting type |
Bottom |
Remarks: Carbon dioxide pressure gauges, acetylene pressure gauges or other related gas can also produce like this carbon dioxide type.
