◎Applications

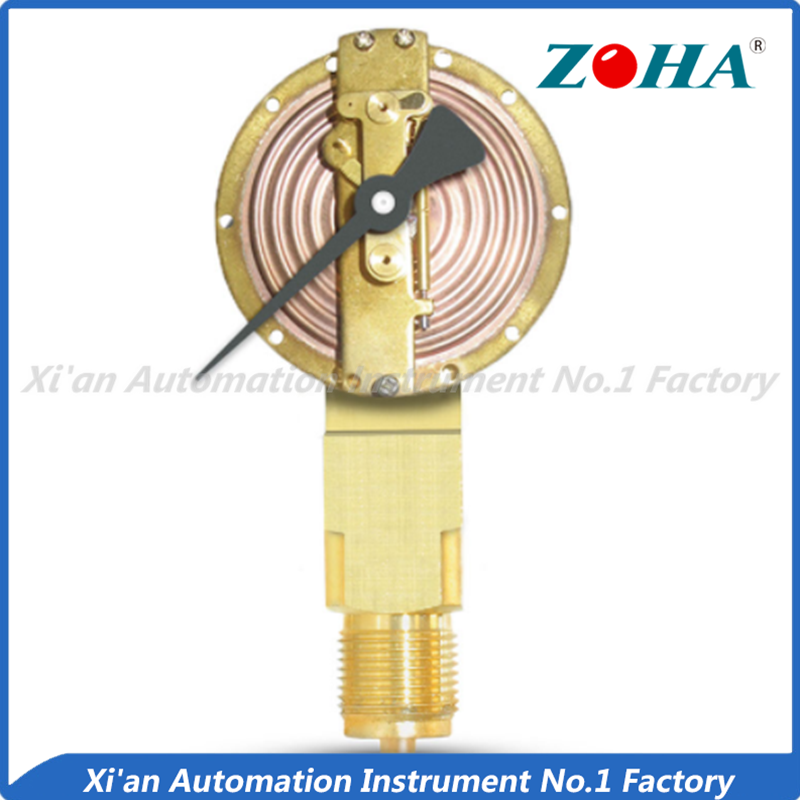

YE-100 Black Steel Capsule Pressure gauge adopt capsule as the sensitivity part, can measure the micro-pressure or negative pressure of the gases which have no corrosion function to the copper alloys and have no explosion. And it is widely used in boiler ventilation, gas tube and fuel setting and so on.

◎Specifications

Dial Diameter

100mm

Measuring Range

Between -40~0~60KPa

Pressure Unit

kpa mbar mmHg mmH2O etc.

(single or double scale both available)

Accuracy Class

±1.5%

Case Material

Black Steel

Capsule

Brass or stainless steel both available

Connector

Brass

Mounting Type

Bottom

Pointer

Aluminum black

Thread

M20*1.5 G1/2 NPT1/2 etc.
(We can accept all kinds of thread from customers)

Using Area

Boiler ventilation systems, gas pipes, incendiary devices and other similar equipment, OEM

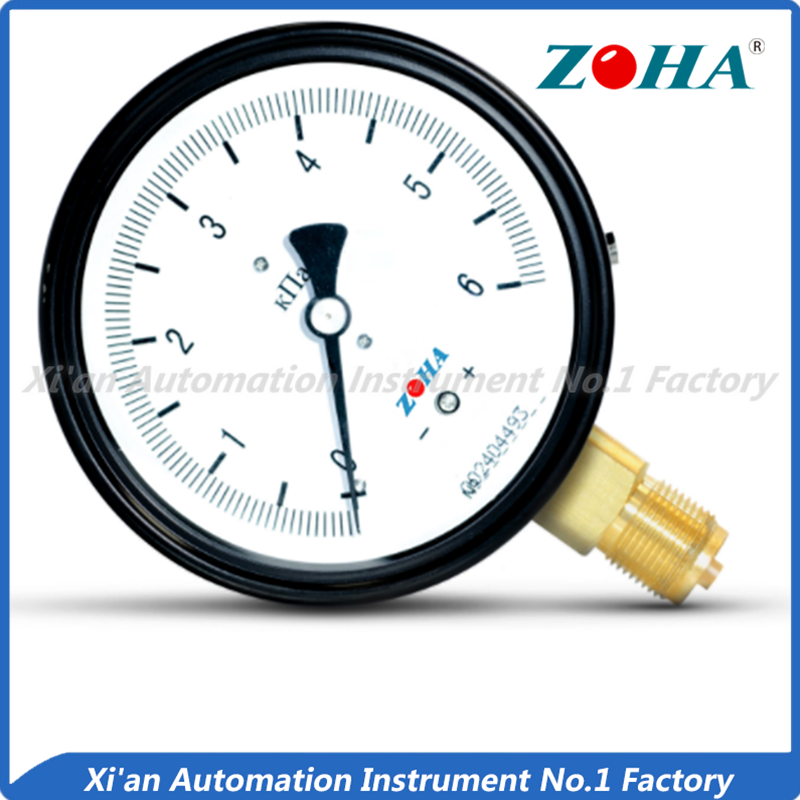

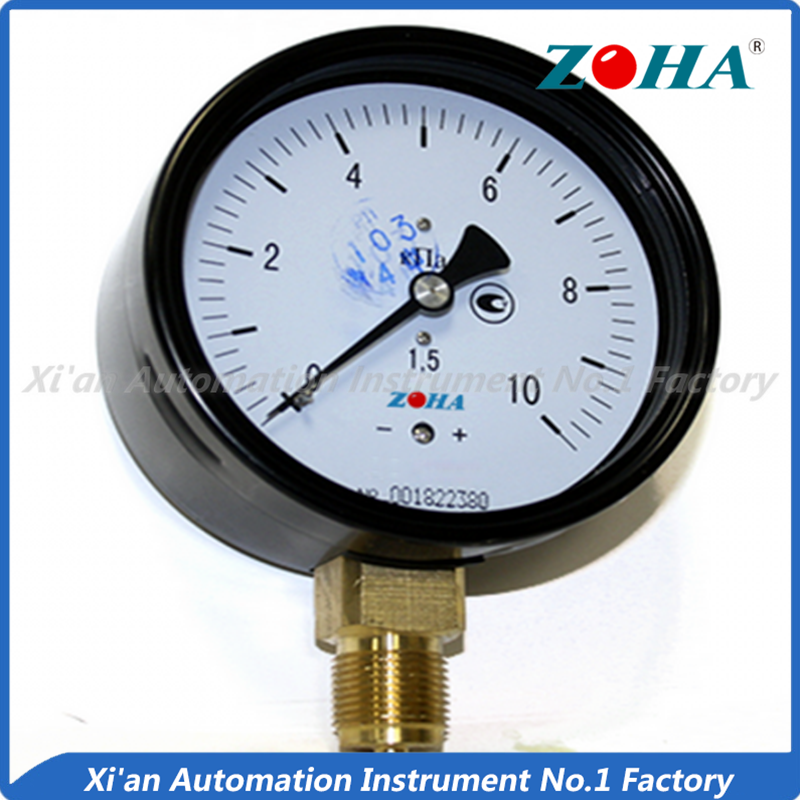

  • Product pictures
