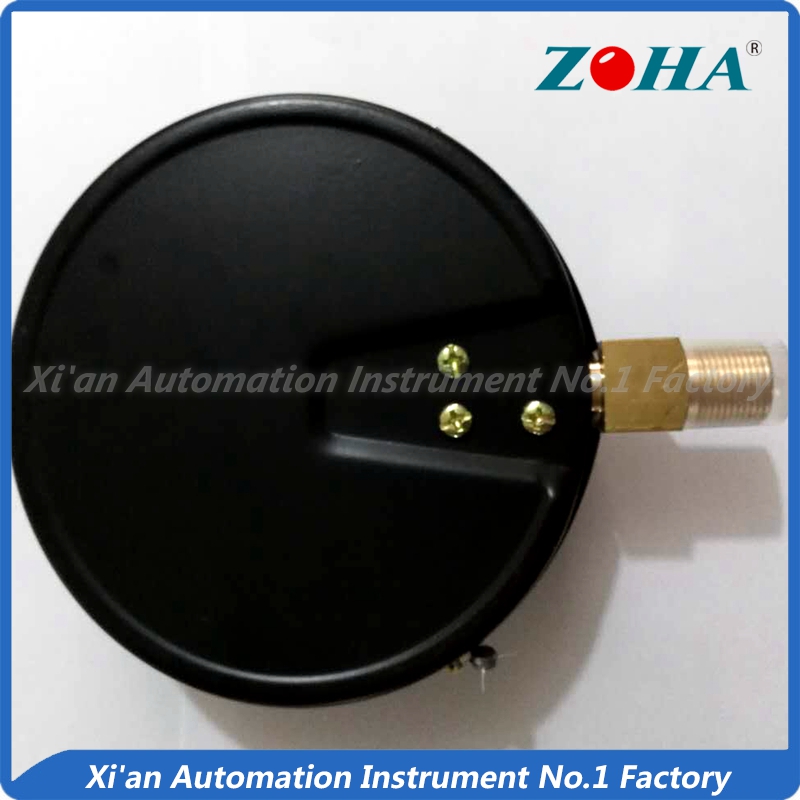

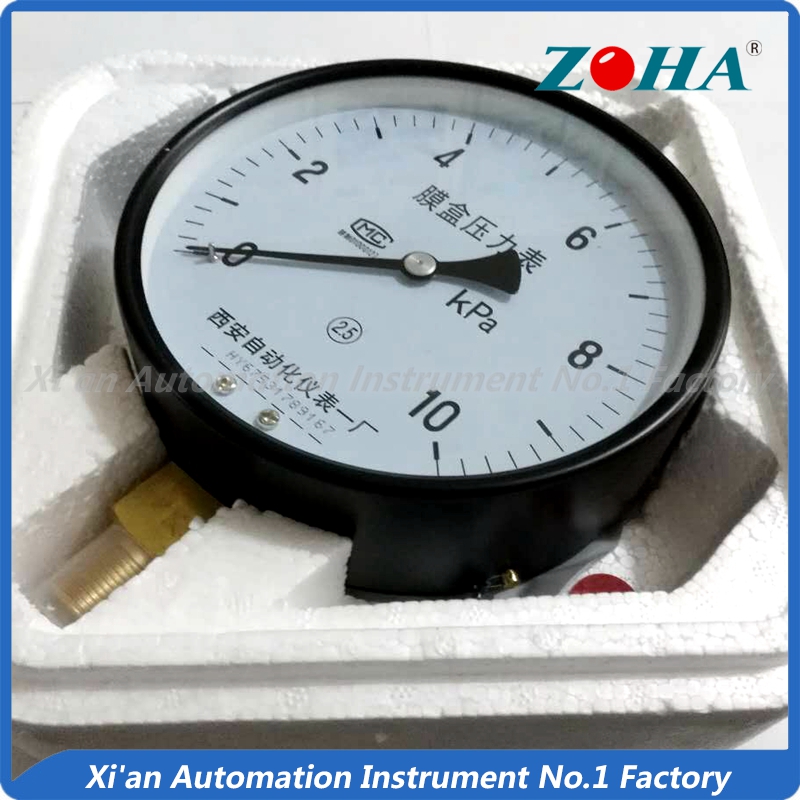

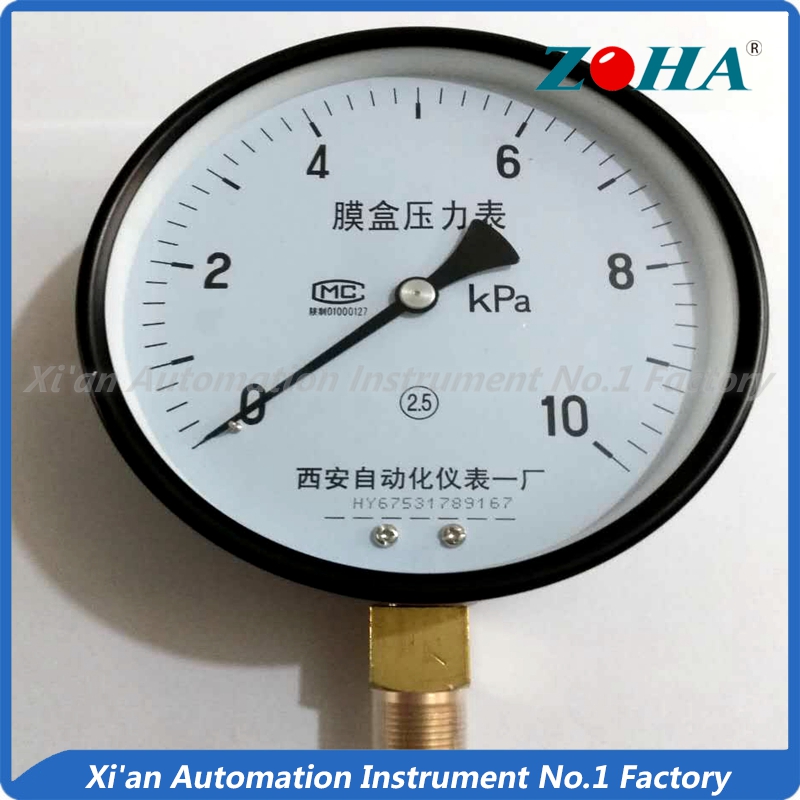

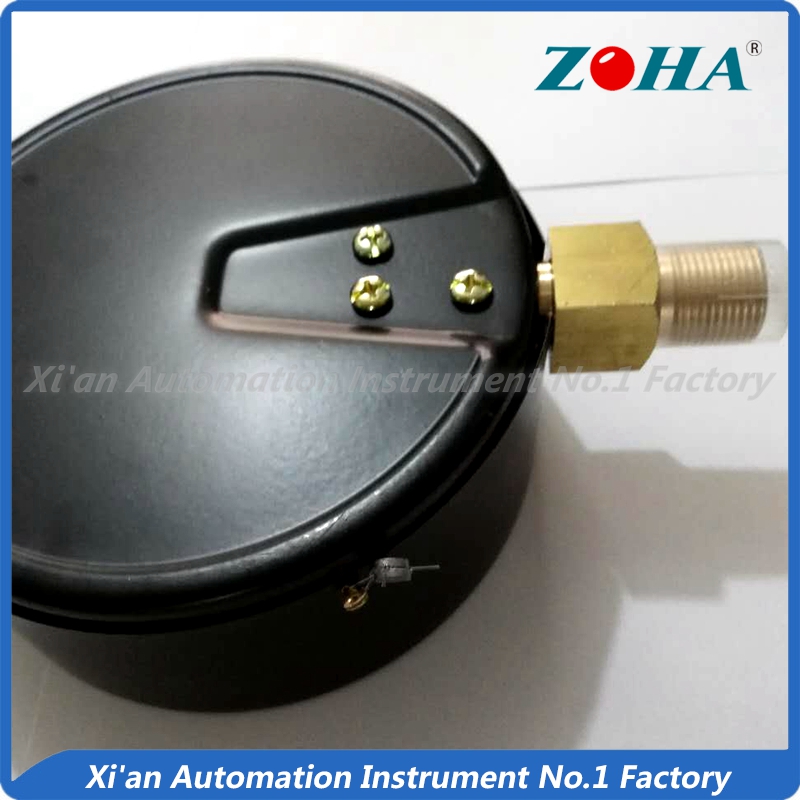

YE-150 Capsule Pressure gauge

YE-150 Capsule Pressure gauge

If you have any questions, please contact us!
Contact Us
◎Applications

YE-100 Capsule Pressure gauge adopt capsule as the sensitivity part, can measure the micro-pressure or negative pressure of the gases which have no corrosion function to the copper alloys and have no explosion. And it is widely used in boiler ventilation, gas tube and fuel setting and so on.

◎Specifications

Dial Diameter

150mm

Measuring Range

Between -40~0~60KPa

Pressure Unit

kpa mbar mmHg mmH2O etc.

(single or double scale both available)

Accuracy Class

±2.5%

Case Material

Steel

Capsule

Brass (stainless steel available)

Connector

Brass

Mounting Type

Bottom

Pointer

Aluminum black

Thread

M20*1.5G1/2NPT1/2 etc.
(We can accept all kinds of thread from customers)

Using Area

Boiler ventilation systems, gas pipes, incendiary devices and other similar equipment, OEM
