◎Applications

The miniature economy pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys.

◎Specifications

Dial Diameter

40mm 50mm 63mm

Measuring Range

Between -0.1~0~60MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±2.5%

Case Material

Steelor plastic

Movement

Brass with steel

Bourdon Tube

Phosphor bronze

Connector

Brass

Mounting Type

Back or bottom

Pointer

Aluminum black

Over-pressure

30%

Thread

M20*1.5 G1/2 NPT1/2 G1/4 NPT1/4 G1/8 NPT1/8 etc.
(We can accept all kinds of thread from customers)

Environment Temp
and Humidity

-40~70°C≤85%

Using Area

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

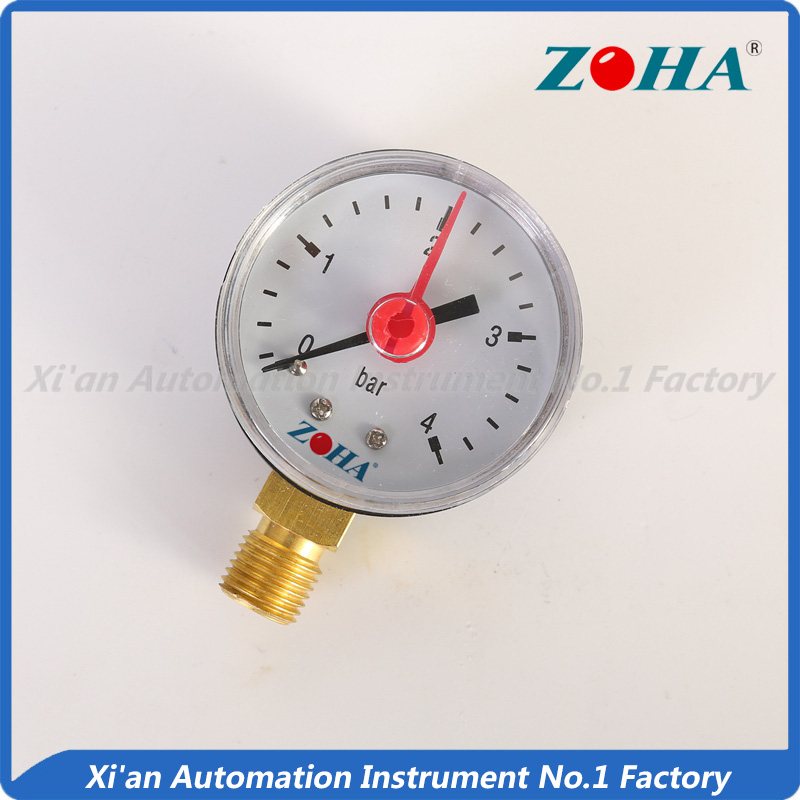

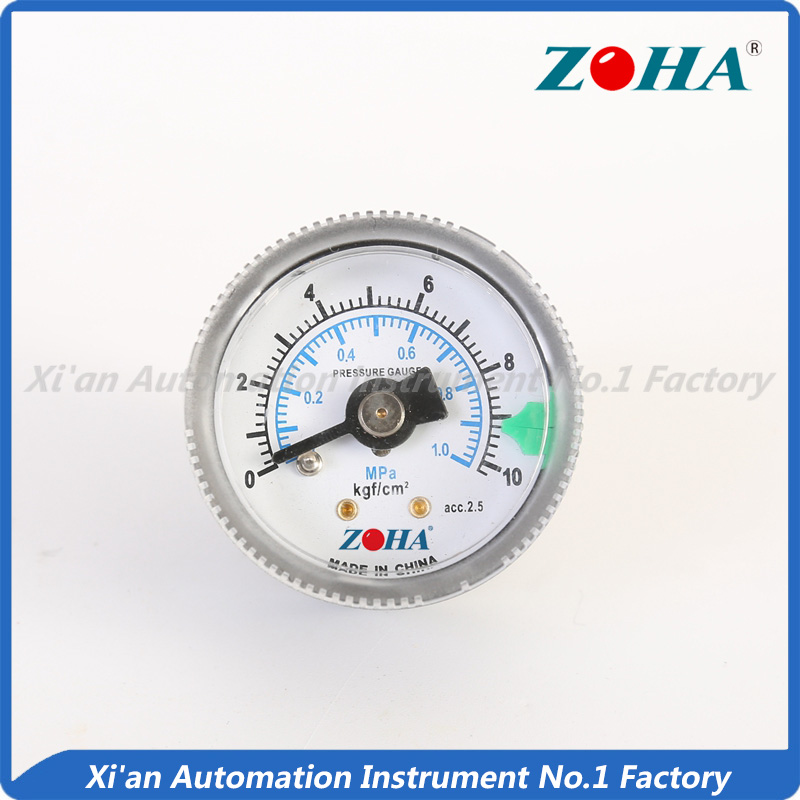

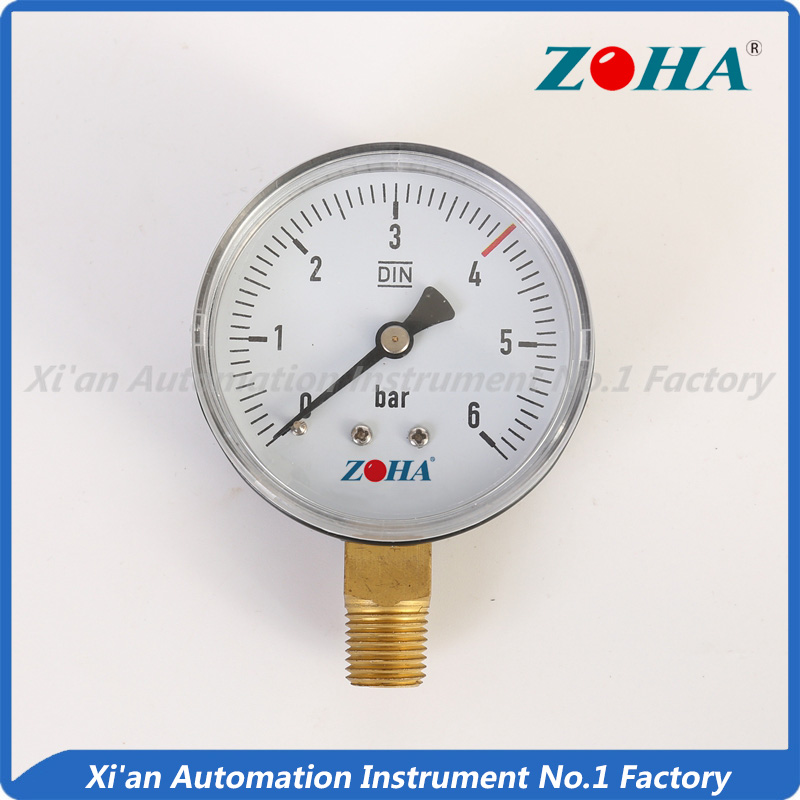

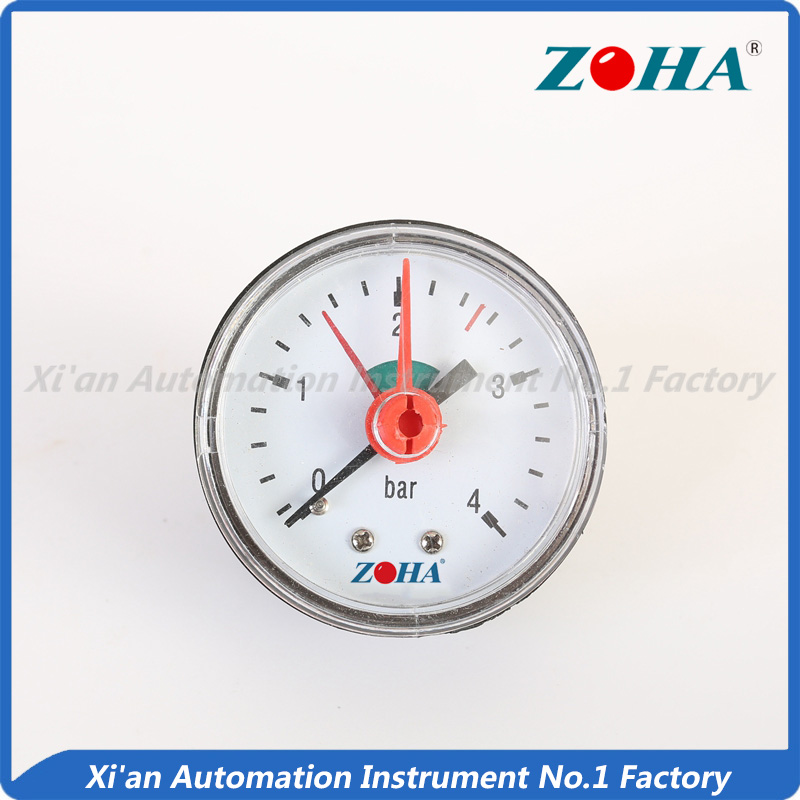

  • Product pictures
