Dust-proof Pressure Gauges

Dust-proof Pressure Gauges

If you have any questions, please contact us!
Contact Us

◎Applications

It is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys. Has a higher ingress protection of IP54 than common types.

◎Specifications

Model

Y-100W Y-150W

Diameter

100mm 150mm

Accuracy class

1.5%

Measuring Range

0~0.1......100MPa

Connection thread

M20*1.5  G1/2  ZG1/2  NPT1/2  G3/8  ZG3/8  NPT3/8等等

Case

Steel

Movement

Brass and steel

Bourdon tube

Phosphor bronze

Connector

Brass

Ingress Protection

IP54

Mounting Type

Bottom Mounting

Using Environment

-40℃~70℃

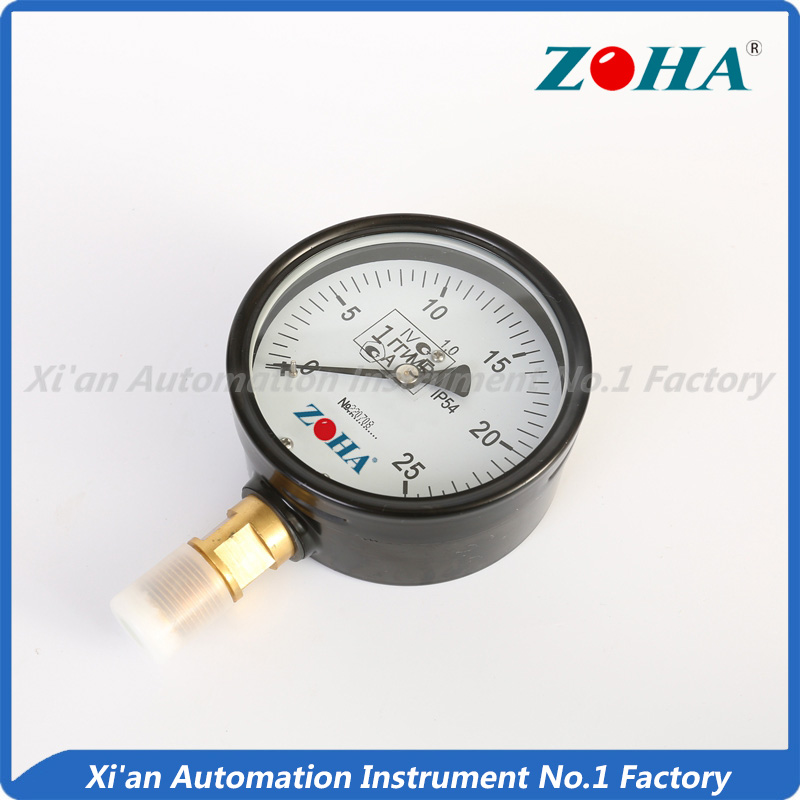

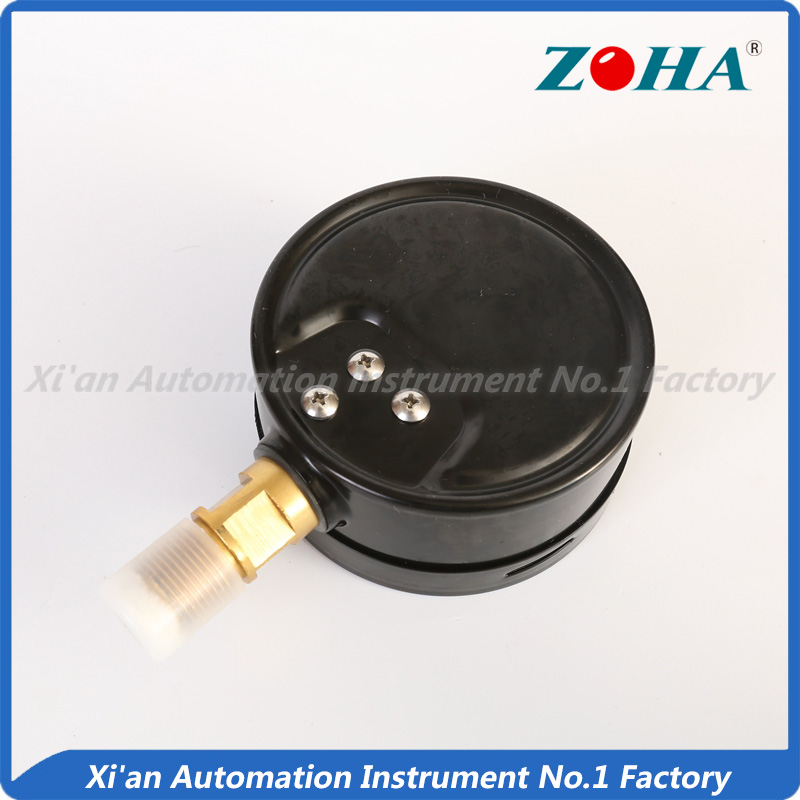

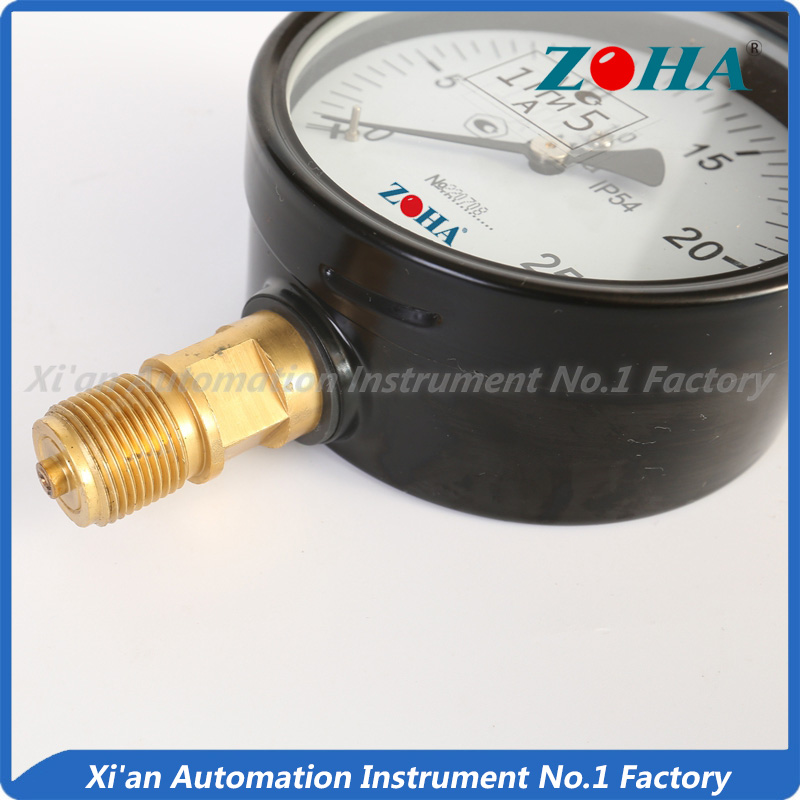

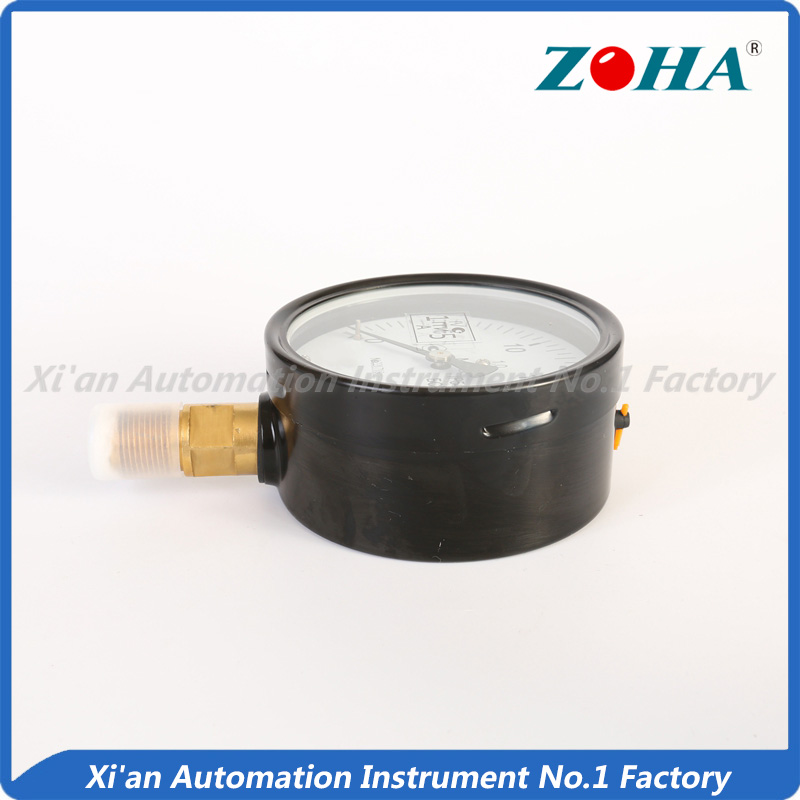

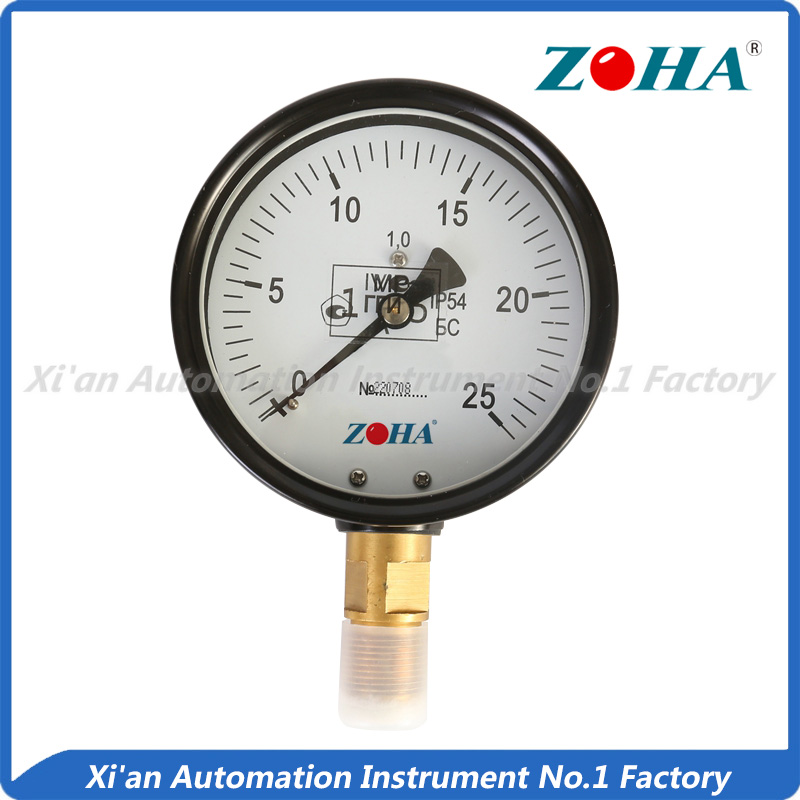

  • Product pictures
