Xi'an Automation Instrument No.1 Factory

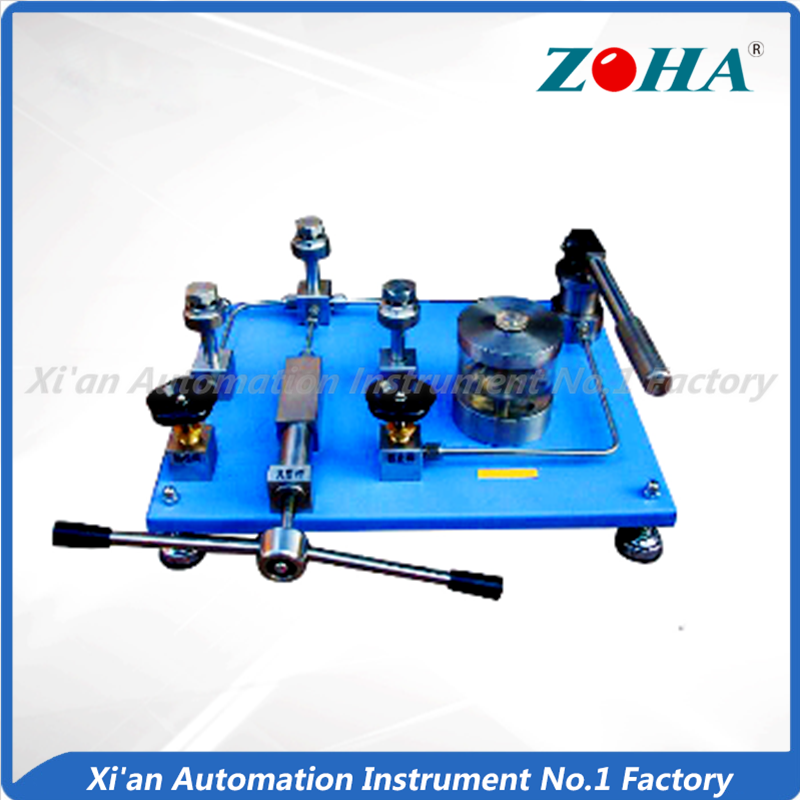

TP-302 Desktop manual hydraulic pump

Product Center

TP-302 Desktop manual hydraulic pump

TP-302 Desktop manual hydraulic pump

If you have any questions, please contact us!
Contact Us

Product Introduction

TP-302 Desktop manual hydraulic pump is consists of pressurized pump, Slide type secondary pressurized pump, Transparent oil cups, Oil box, Pressure adjustment system, Fine-tune valve and Output Interface. Its with high sealing performance, steady boost pressure, speed suppress, effort and simple operation.



Performance characteristics

◆ Good sealing performance

◆ Boost smooth, fast boost speed

◆ Effort, simple operation



Main Specifications

◆ Pressure range: (0 ~ 60) MPa (can be expanded to 72MPa)

◆ Stability: better than 0.05% F • S

◆ Output interface: M20 × 1.5 female thread

◆ Working medium: 25 # transformer oil

◆ Dimensions: 450mm × 420mm × 200mm

◆ Weight: 12kg

  • Product pictures
