Economy Pressure Gauge---Back with clamp

Product Center

Economy Pressure Gauge---Back with clamp

Economy Pressure Gauge---Back with clamp

If you have any questions, please contact us!
Contact Us

◎Applications

The economy pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys. It is back with clamp for mounting.

◎Specifications

Dial Diameter

40mm 50mm

Measuring Range

Between -0.1~0~60MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±2.5%

Case Material

Steel

Movement

Brass with steel

Bourdon Tube

Phosphor bronze

Connector

Brass

Mounting Type

Back with clamp

Pointer

Aluminum black

Over-pressure

30%

Thread

M20*1.5 G1/2 NPT1/2 G1/4 NPT1/4 G1/8 NPT1/8 etc.
(We can accept all kinds of thread from customers)

Environment Temp
and Humidity

-40~70°C≤85%

Using Area

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

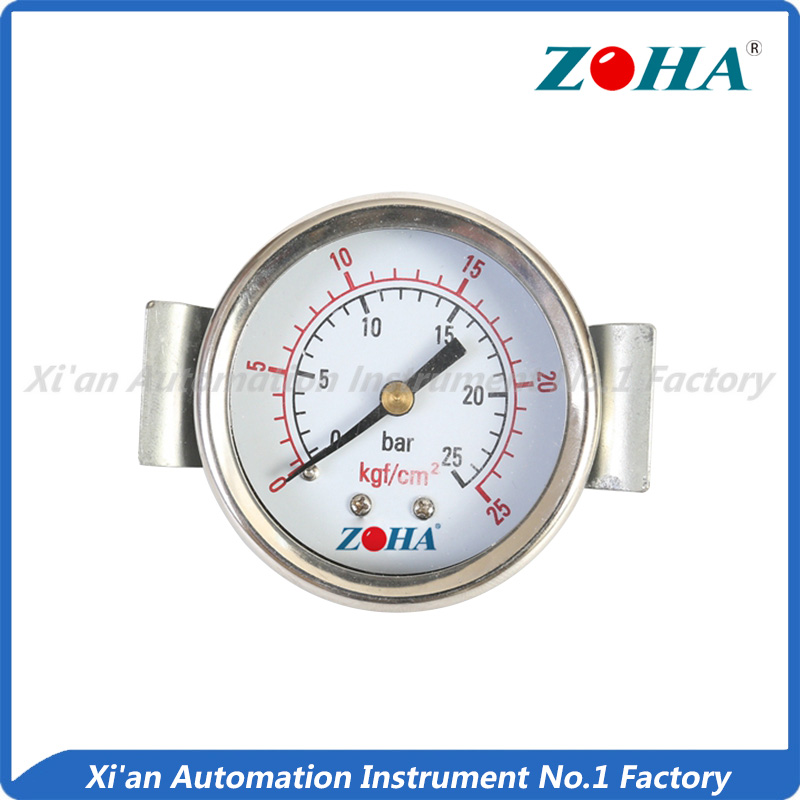

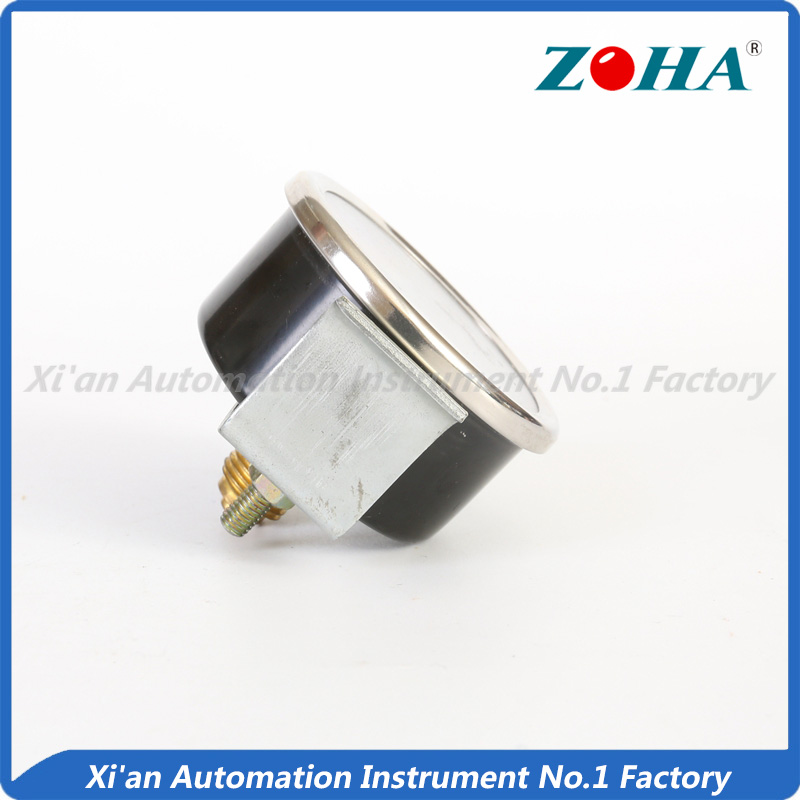

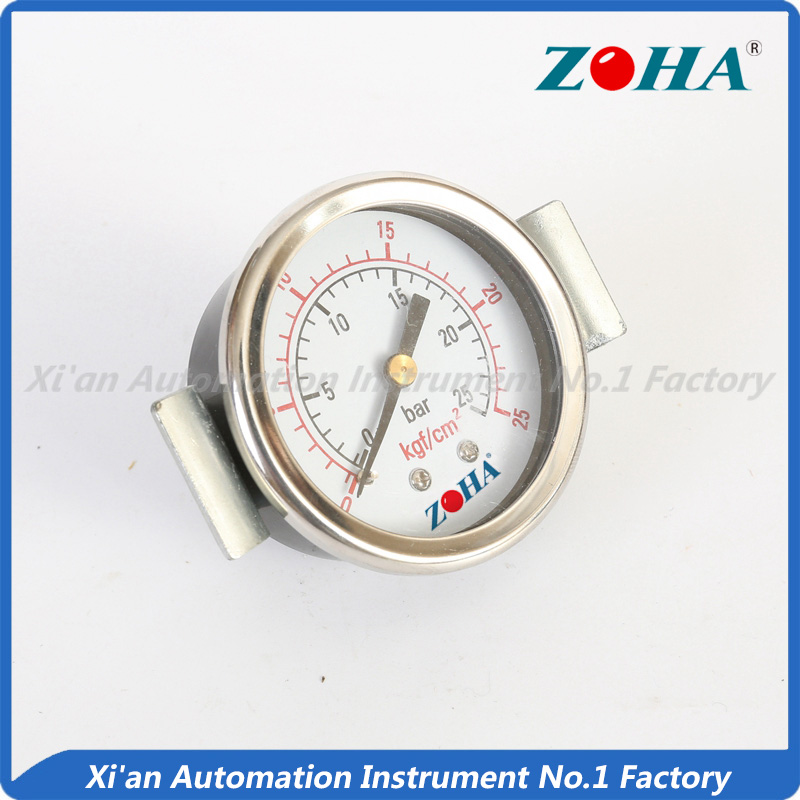

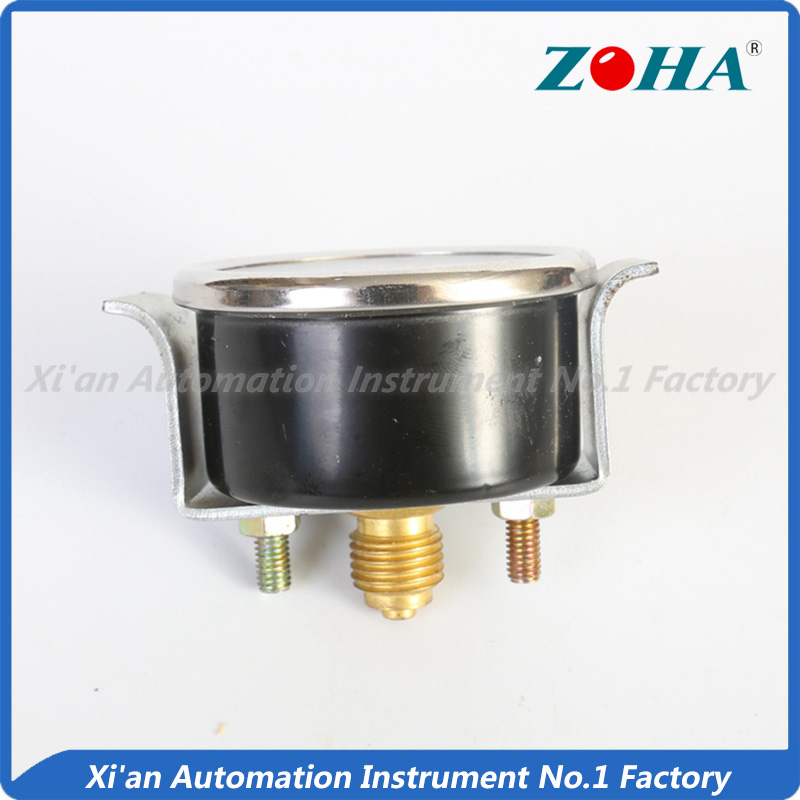

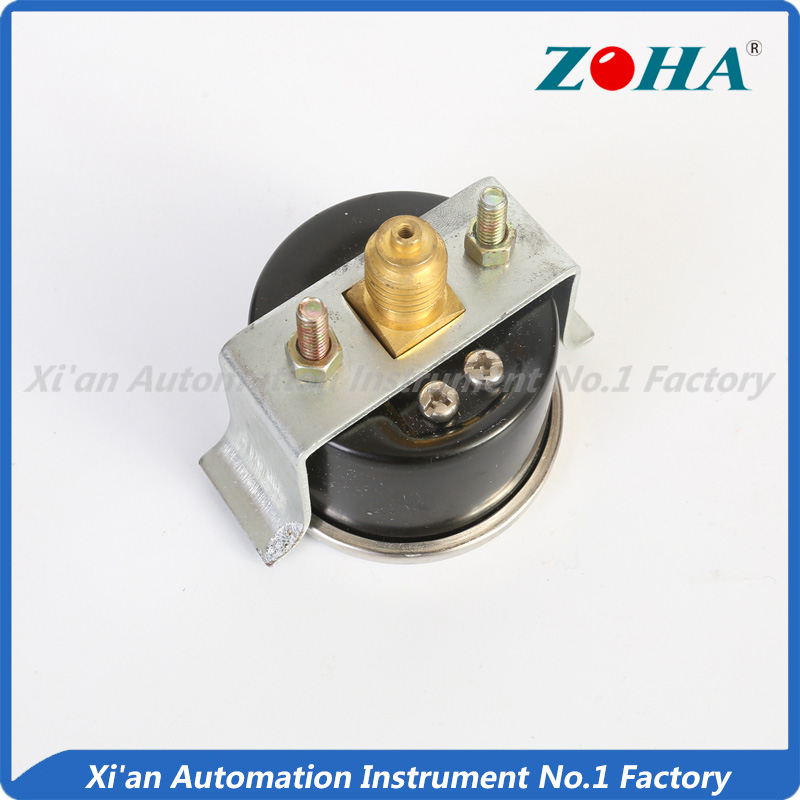

  • Product pictures
