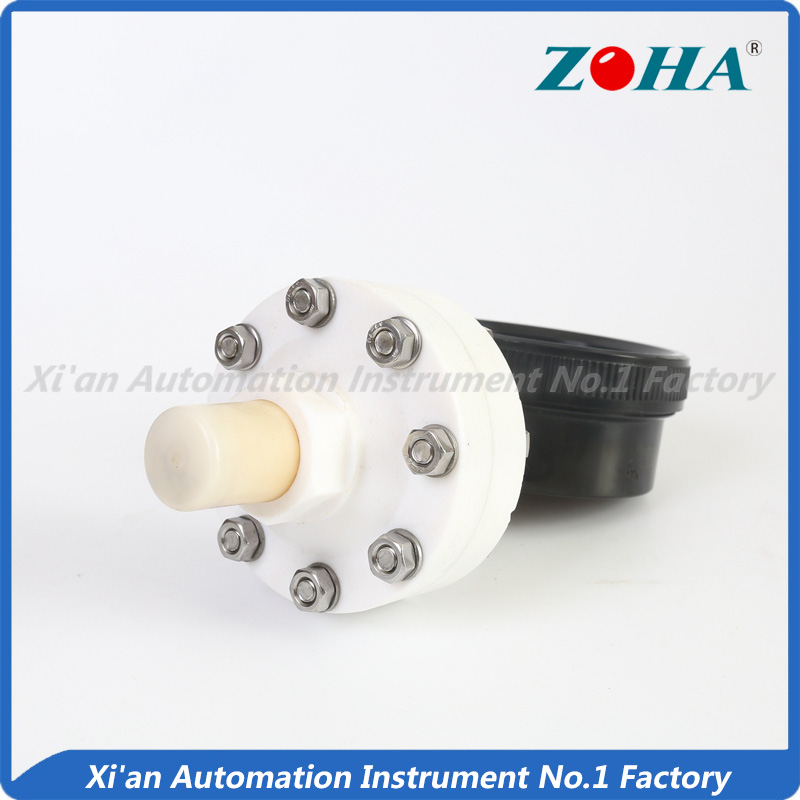

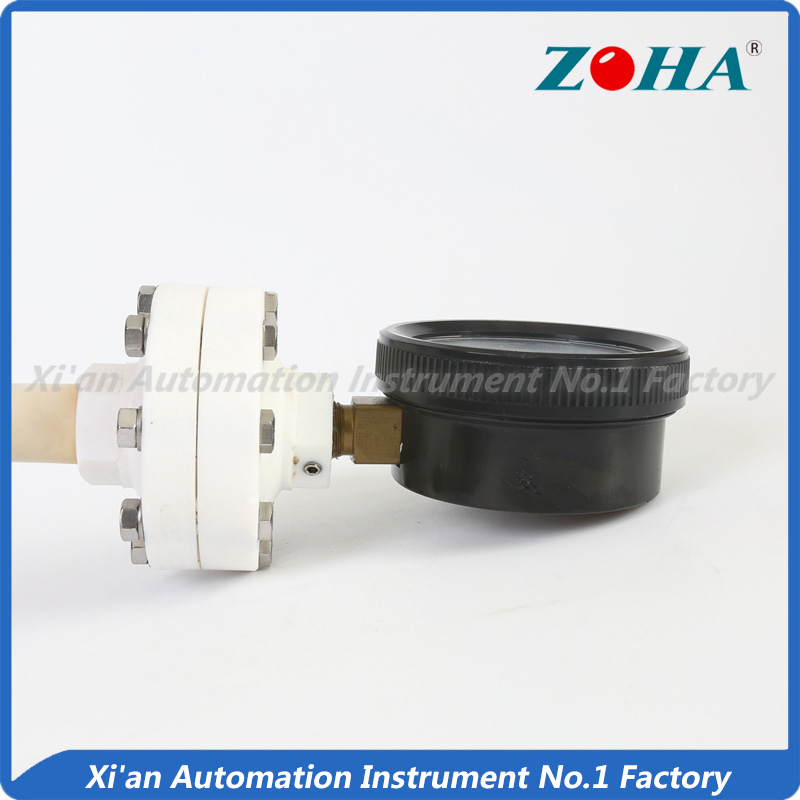

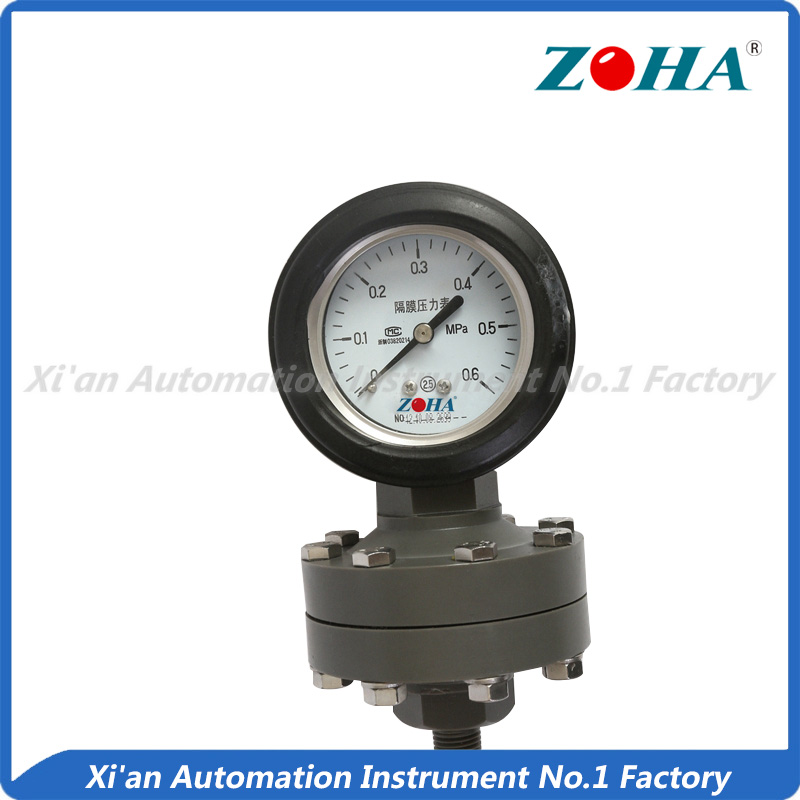

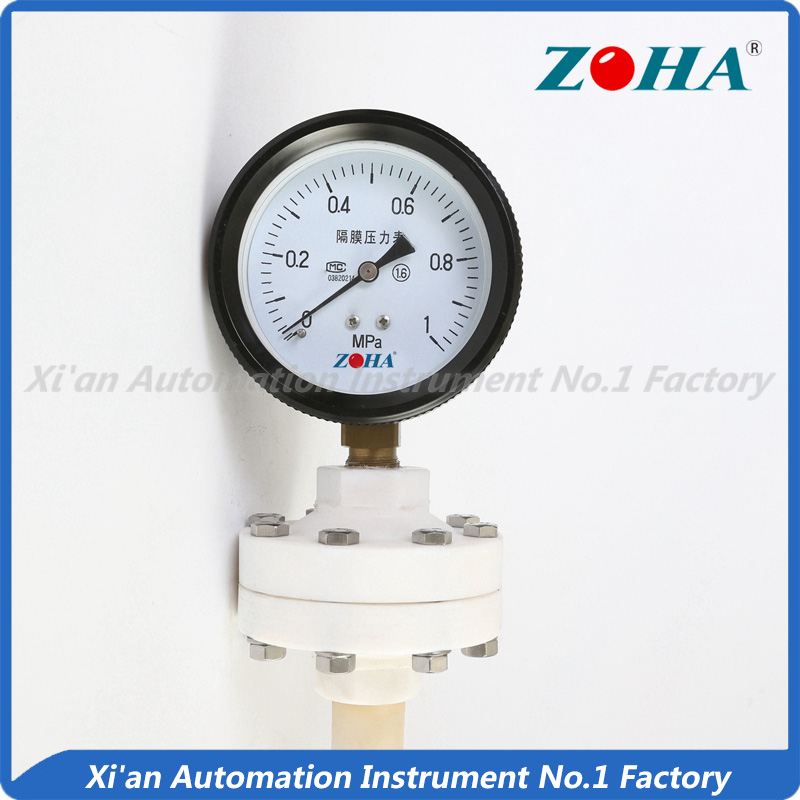

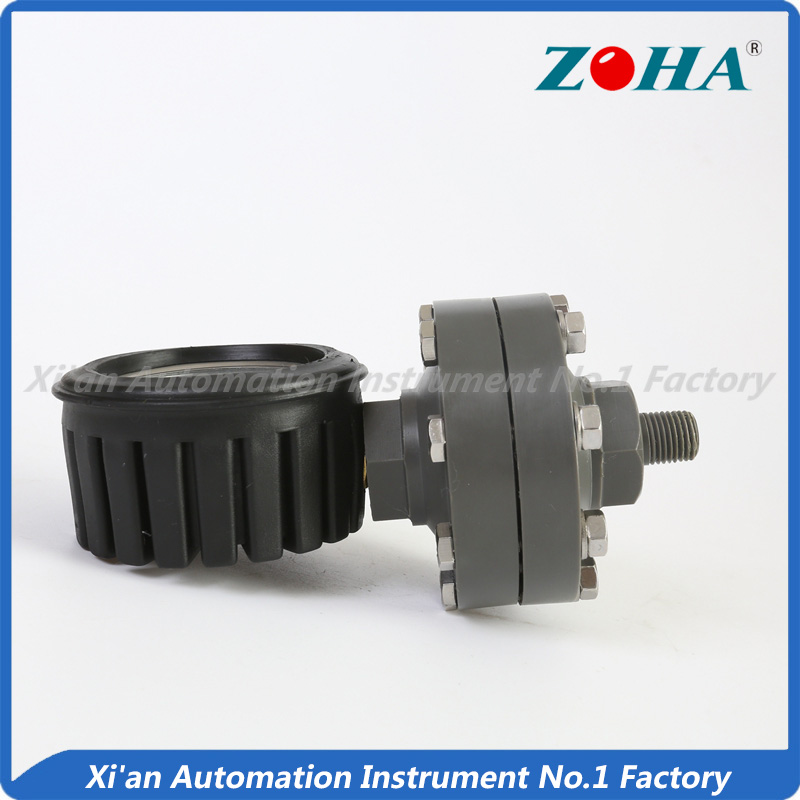

This gauge is made up of plastic pressure gauge for common use and full plastic diaphragm body. Diaphragm body type includes standard mode and I-shape mode.
The major components of full-plastic diaphragm pressure gauge are all made from plastic, the material of diaphragm is PTFE, which is excellently anti-corrosive. This gauge is suitable for chemical industry measuring the pressure of those strongly corrosive liquids or gas, including chlorine, hydrochloric acid, nitric acid and so on.



YTP -75S YTP-100S



Measuring range


Protection degree


Temperature of working environment


Gauge connector

copper alloy

Diaphragm body material


I-shape flange connection

(refer to flange standard)

Diaphragm connection

standard connecting thread M20*1.5

Gauge liquid filling

filled with working-use silicone oil

Working pressure

static load, 3/4 of measuring upper limit

Alternate load

2/3 of measuring upper limit

Instant pressure

full measuring range

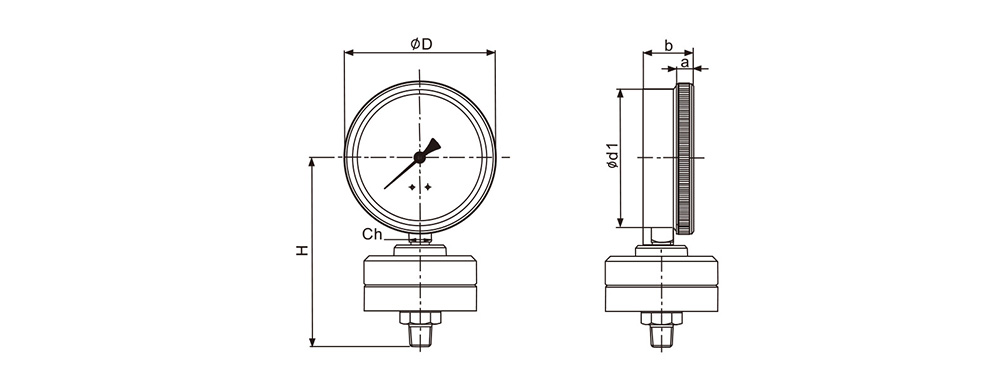

◎Outline size(mm)

Model Size
D d1 Ch a b H
YTP-75S 90 79 17 13 37.5 137
YTP-100S 116 105 17 13 37.5 150
