◎Applications Description

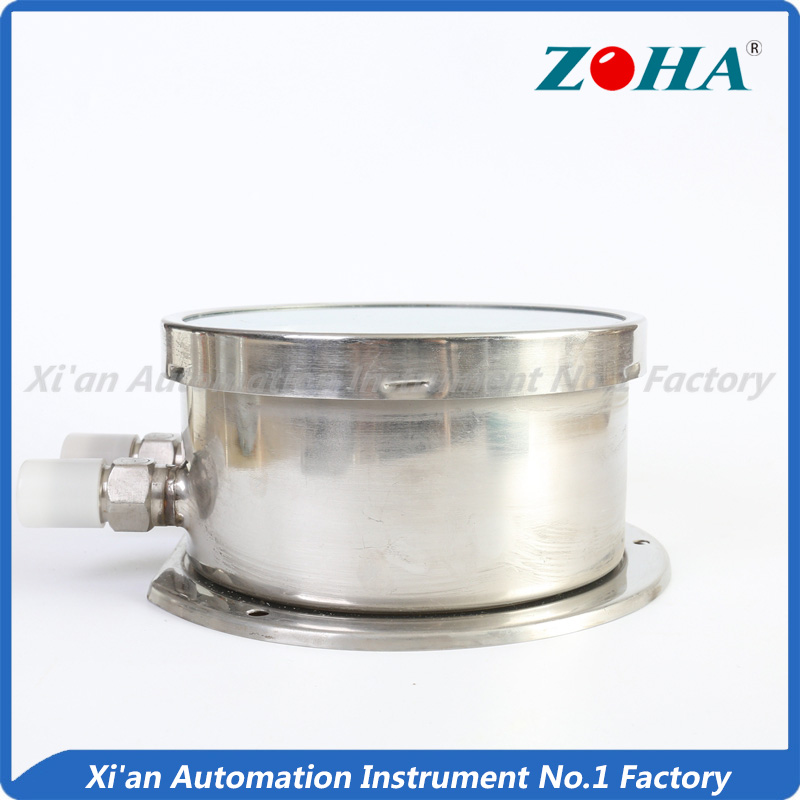

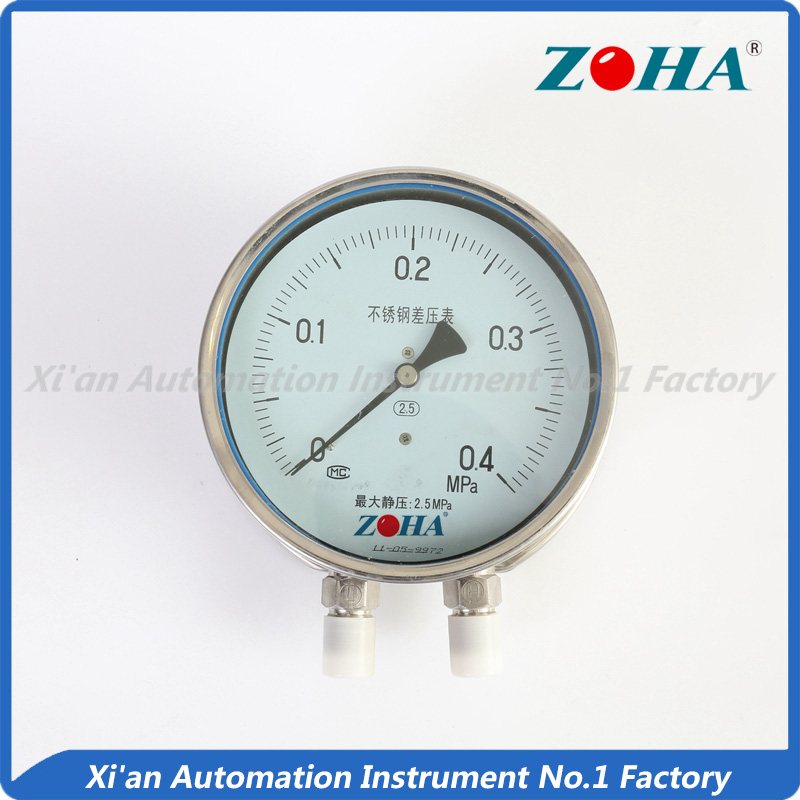

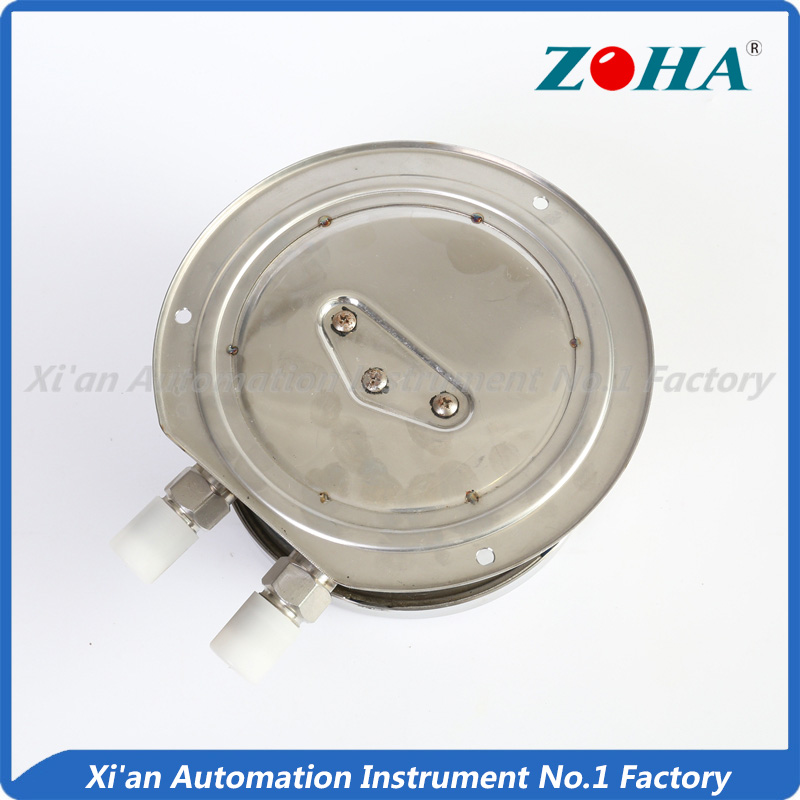

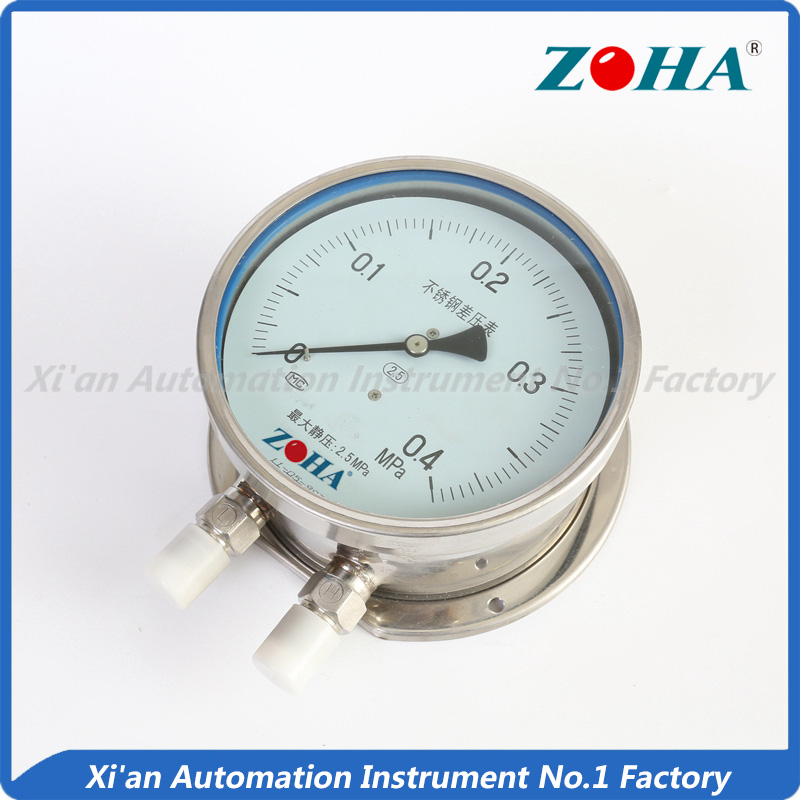

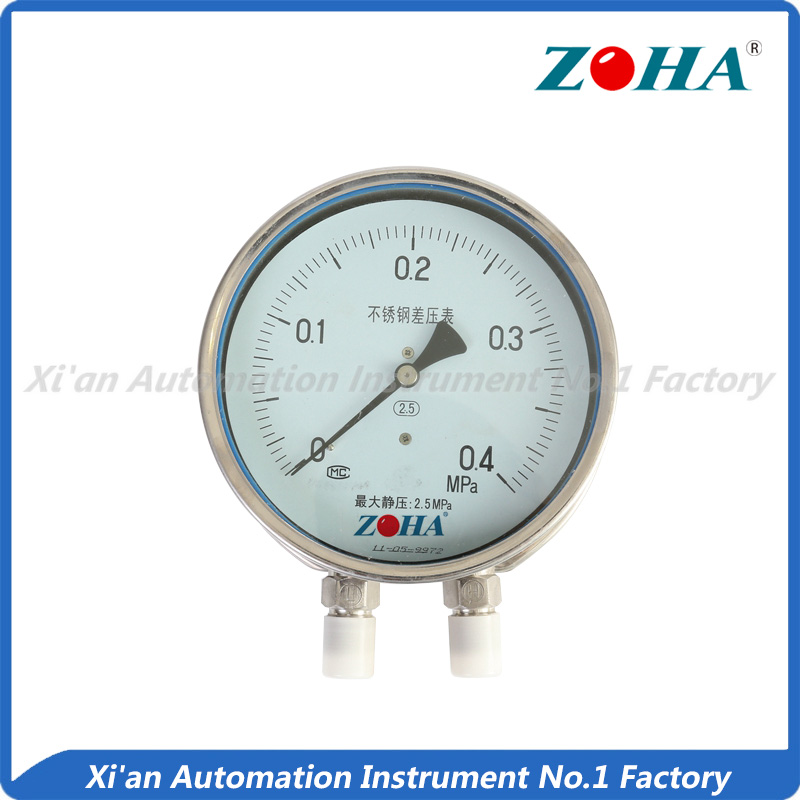

CYW-152B and CYW-153B stainless steel differential pressure meter (it calls meter for short) as follow apply to measure the various liquid or gas medium in the techniques process of chemical industry, fiber industry, metallurgy, electric power and nuclear power, etc. The whole structure of the meter is adopted the stainless steel, the measuring system (double corrugation pipes and connecting parts), conducting system (including the joint, pipe, etc.) are made of the special type austenitic stainless steel which have strong resistance to corrosion and environmental etching. The structure of the meter has the advantages Of small volume, light weight, good stability, long useful life, good appearance, strong applicability. Because of the logical deign and advanced techniques, the junction forms of joint have parallel type (can directly connect with triple valve group) and tilted type which can meet various demands.
◎Main Technology Data
| measuring range | General working pressure | Accuracy | Connection dimension | material | ||
|
0~10 0~16 0~25 0~40 0~60 0~100 |
KPa |
60 100 160 250 400 600 |
KPa | 2.5 |
M20×1.5 NPT 1 / 2 |
Connector,pipe :316 Corrugation:316L Case,cover,ring:304 |
|
0~0.16 0~0.25 0~0.40 0~0.60 0~1 0~1.6 0~2.5 |
MPa |
1 1.6 2.5 46 10 |
MPa | |||
Conducting system and shell material
Appearance and installation dimension: see chart 1, chart 2, and chart 3.
Using environmental temperature: -40-70℃
Anti- oscillation of the working environment: V.H 3 grade
Weight: about 1.5Kg
Protection grade of the meter shell: Ip54
The technique data of the meter measure up the enterprise standard Q/YXBM831-1997 stainless
steel differential pressure meter
