◎Applications

The pressure gauge is well suited for measuring gases or liquids which will neither explode, nor crystallize, nor corrode copper or copper alloys.

◎Specifications

Model

Y-50T Y-63T

Dial Diameter

50mm 63mm

Measuring Range

Between -0.1~0~60MPa

Pressure Unit

Mpa psi bar kg/cm2 etc. (single or double scale both available)

Accuracy Class

±2.5%

Case Material

Steel or Plastic

Movement

Brass with steel

Bourdon Tube

Phosphor bronze

Connector

Brass

Mounting Type

Bottom panel mounting hose connector

Pointer

Aluminum black

Over-pressure

30%

Environment Temp
and Humidity

-40~70°C≤85%

Using Area

Plumbing, heating, air conditioning, pneumatic, hydraulic, water tanks, air compressors,OEM

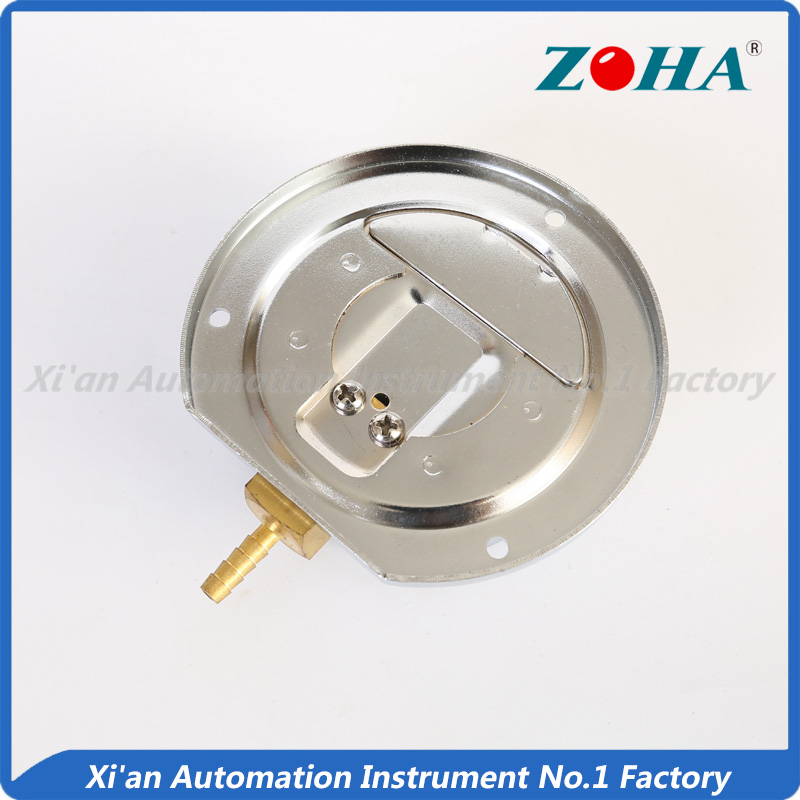

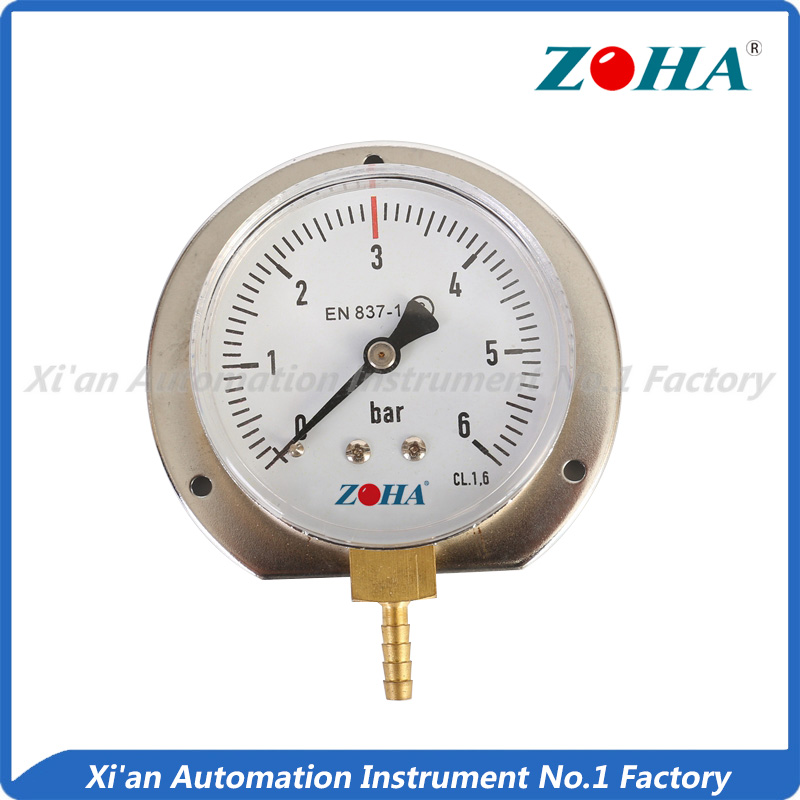

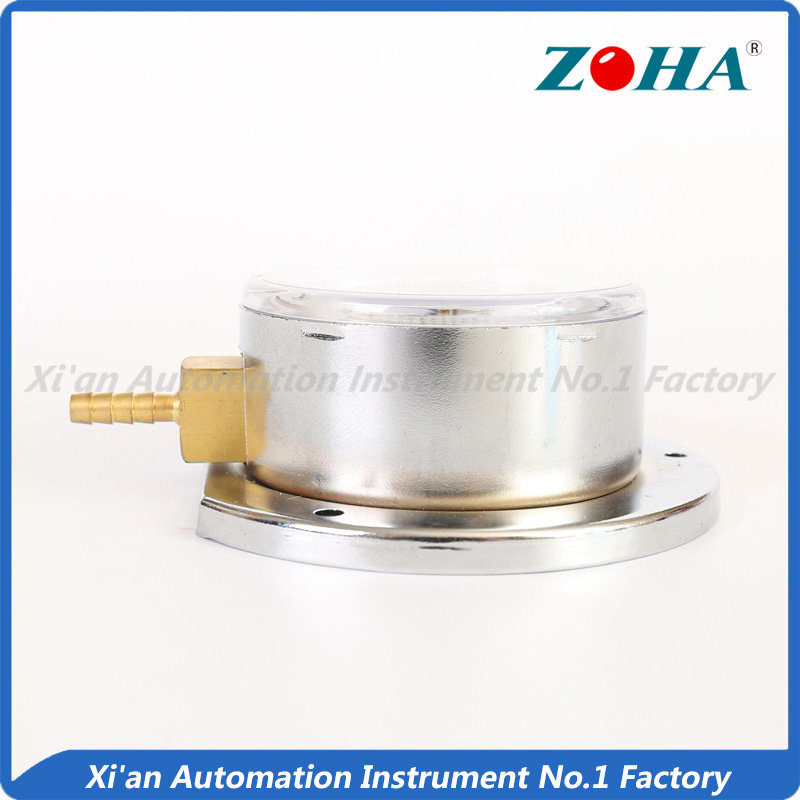

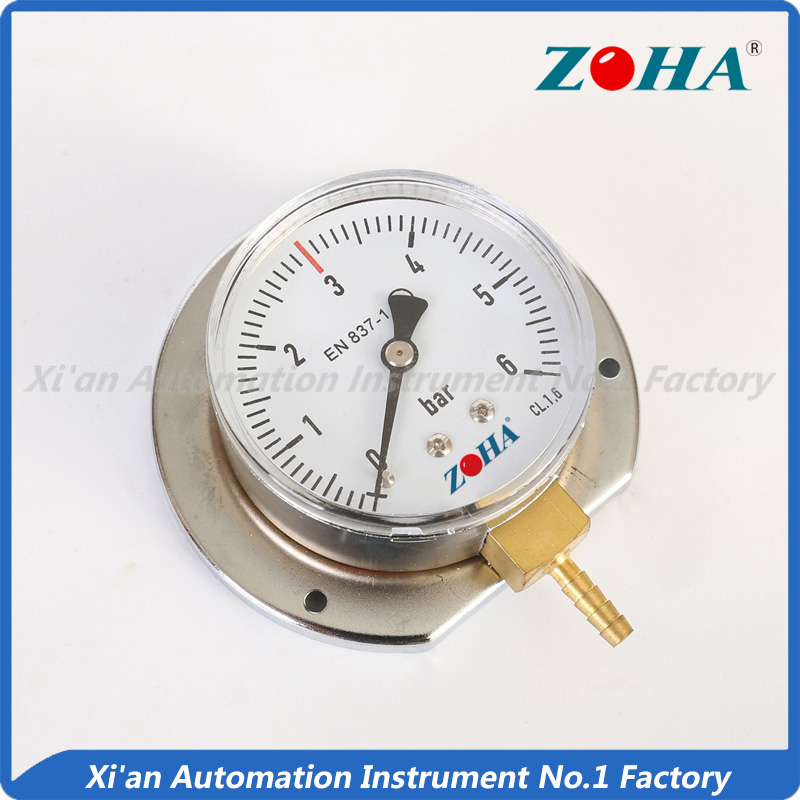

  • Product pictures
