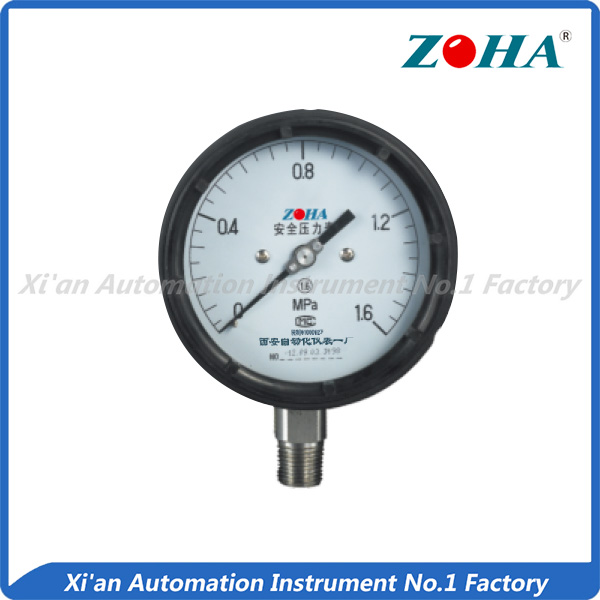

◎Applications Description
This gauge is widely used in production process of oil industry, chemical industry, food, drink and refrigeration, et . It is suitable for measured media and environment condition which have a high demand on gauges.
This gauge has a solid pressure relief cover with safety clapboard.
◎Specifications
|
Type |
Standard industrial process safety pressure gauge (YQS) |
|
Diameter |
Φ150mm |
|
Measuring range |
-0.1-0~-0.1-2.4MPa, -0.1~0~60MPa (As customers requirements) |
|
Pressure Unit |
Mpa psi bar kg/cm2 ect |
| Accuracy class | cl.1.0 cl.1.5 cl.2.5 |
|
Case material |
Phenolic aldehyde (polypropylene) |
|
Pressure relief cover |
Oil-resisting rubber |
| Oil-filling plug | Oil-resisting rubber |
|
Bourdon Tube |
Copper alloy/Stainless Steel (SUS316) |
|
Connector |
Stainless Steel (SUS304/SUS306) |
| Movement | SUS304 |
|
Glass |
Organic glass or explosion proof double layer safety glass |
|
Gauge indicator |
Zero-setting indicator, black, aluminum |
| Dial | Aluminum |
| Mounting Type | Bottom/ Eccentric Back |
| Thread |
M20*1.5 G1/2 NPT1/2 ZG1/2 G3/8 NPT3/8 (We can accept all kinds of thread from customers) |
| Protection grade | IP65 |
| Temp of work ENV | -20~60°C |
| Temp of work media | ≤100°C |
◎Working pressure and scope of application
Static pressure : 3/4* full range
Dynamic pressure: 2/3* full range
Instant pressure: 1.3* full range

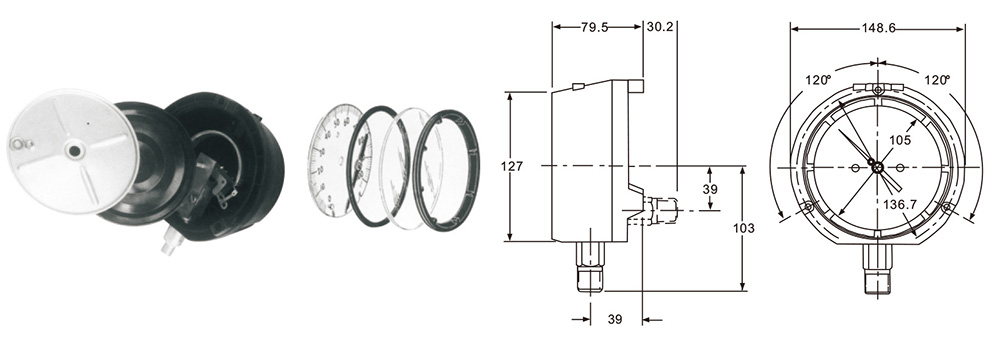

◎Outline size(mm)
