◎Application
Bi-metal thermometer is a measuring gauge which used bi-metal piece as sensor part. Widely used in machinery, chemical textile, medicine, foodstuffs, vessel for measuring and controlling the temperature.
◎Specifications
|
Product name |

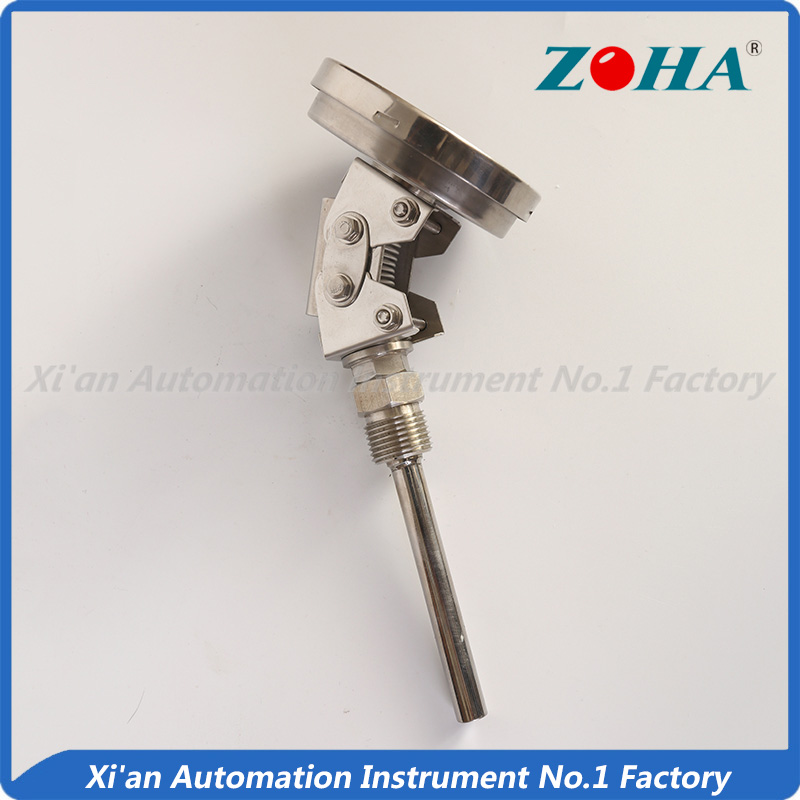

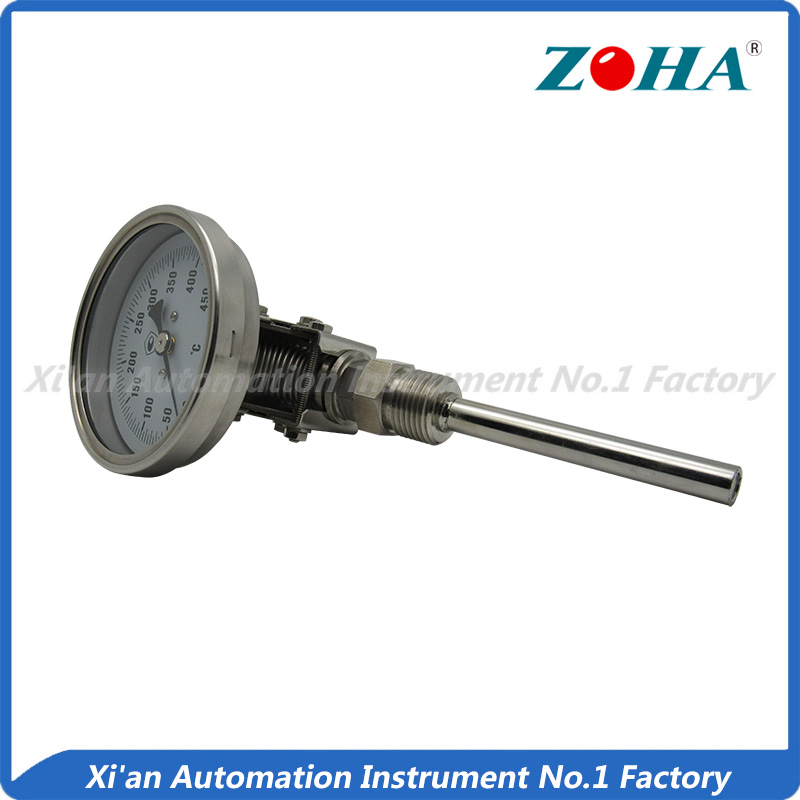

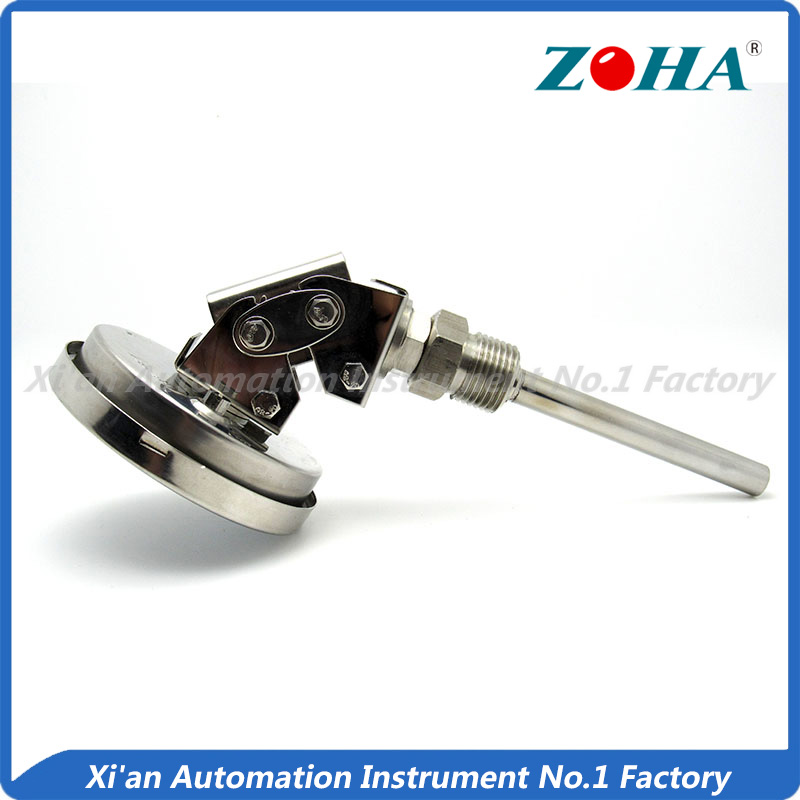

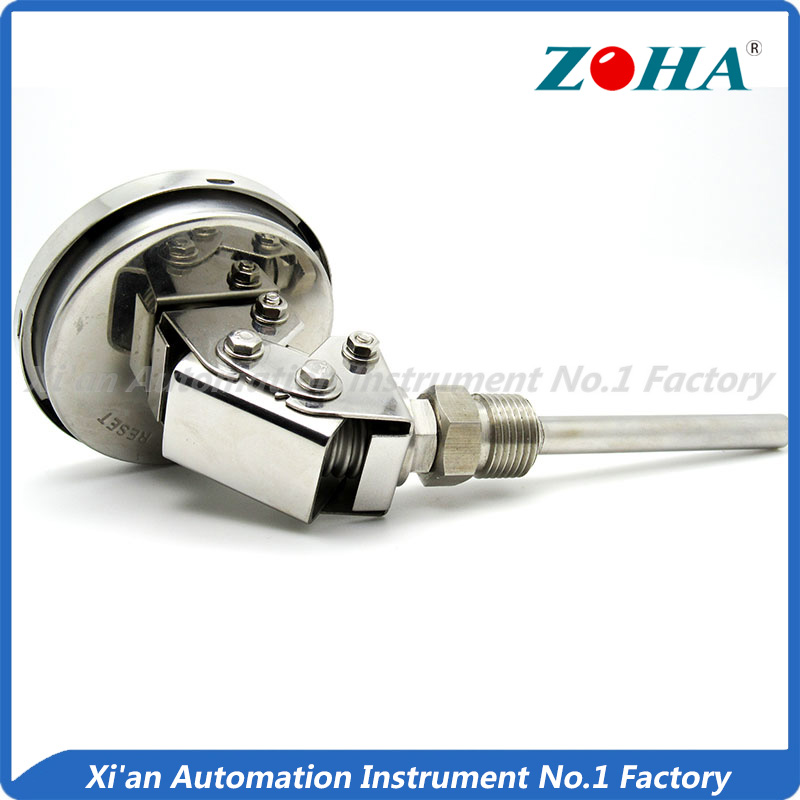

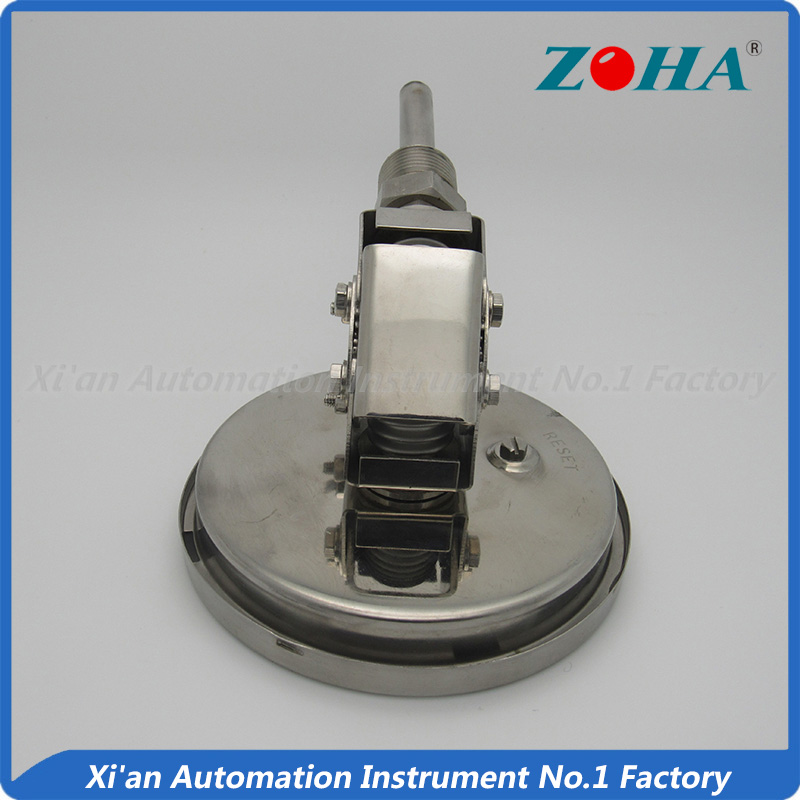

Universal mounting Bi-metal thermometer |
|
Measuring range |
- 60~600°C (Between this range, as customers requirements.) |
|
Diameter |
80mm 100mm |
|
Stem length |
64mm 100mm 150mm 200mm 250mm 300mm 350mm or longer |
|
Stem diameter(mm) |
Φ6Φ8Φ10 |
|
Case Material |
Stainless steel |
|
Ring |
Stainless steel |
|
Stem Material |
Stainless steel |
|
Thermowell |
Stainless steel or no thermowell |
|
Thermowell thread |
G1/2 (other thread is also allowed) |
|
Stem thread |
G1/2 G1/4 (other thread or no thread is also allowed) |
|
Mounting type |
Universal |
|
Lens |
Glass |
|
Dial |
Aluminum-white |
|
Pointer |
Aluminum-black |
|
Zero adjustment |
With adjustment |
|
Accuracy |
1.5% 2.5% |
Special requirements from customers are acceptable
